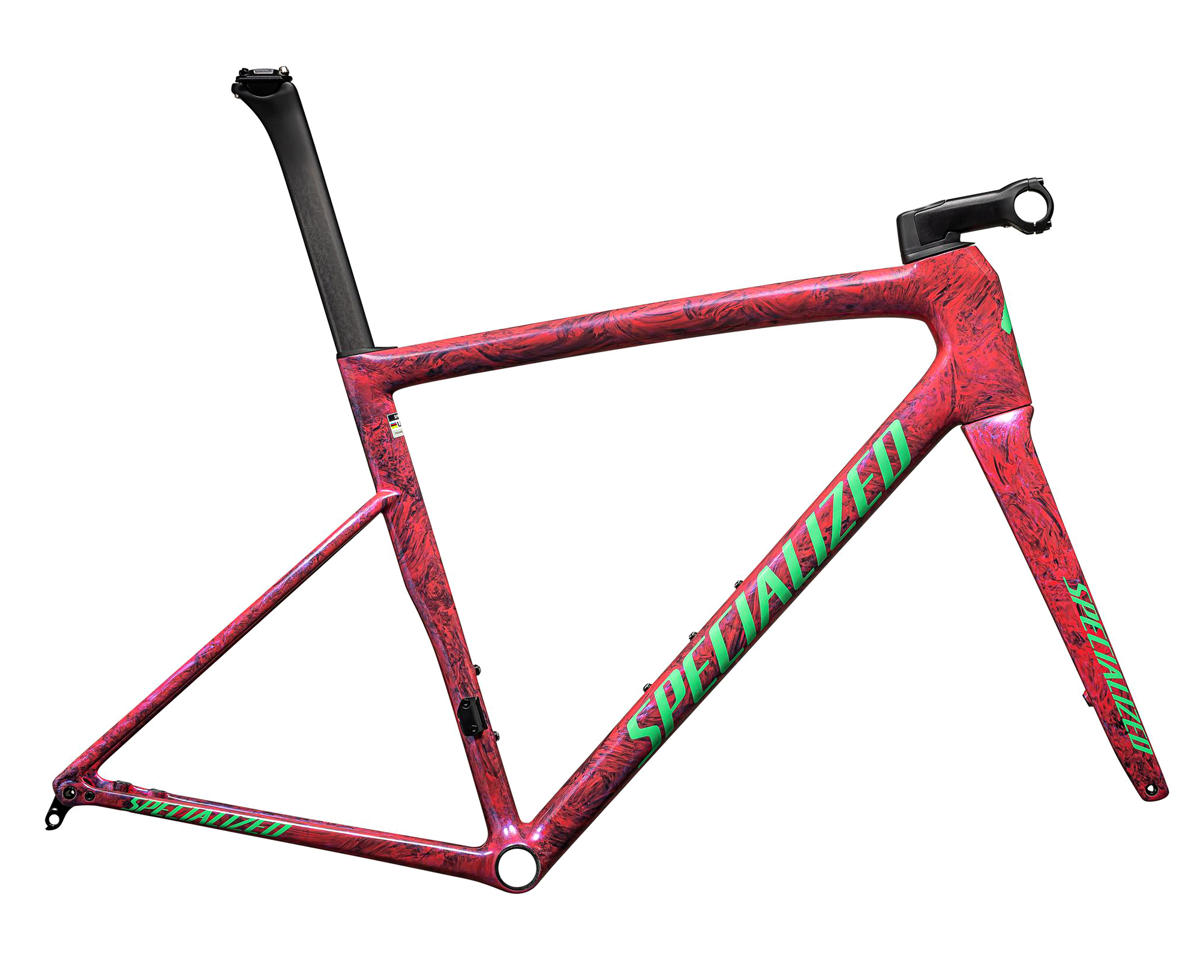

Specialized Tarmac SL8 Frameset

  • Specialized Tarmac SL8 Frameset (Gloss Carbon/Vivid Pink Strata/Electric Green)
  • Specialized Tarmac SL8 Frameset (Satin Blue Onyx/Black)
Price:
$1,924.99
Item:
624182480
Brand:
Condition:
New
Availability:
In Stock
Shipping:
Calculated at checkout
Color:
Size:

View Size Chart




  • Product Description

    The Specialized Tarmac SL8 Frameset is designed for speed across any ride profile. Building upon the SL7's "one bike to rule them all" mantra, the Tarmac SL8 takes this all-around winning design and shaves weight while prioritizing aerodynamics and stiffness. This 1.69 kg (size 56cm) frame is made from FACT 10r Carbon. While slightly heavier than its S-Works counterpart (around 320g heavier), the SL8 frame provides the same level of compliance as its big sibling. The "Speed Sniffer" front design sets the headtube back away from the bike's leading edge, allowing for a sharper, lower drag shape. Regarding its stiffness-to-weight ratio, the SL8 provides a 33% gain over the SL7, making this bike equally suitable for all-out sprints or hillclimb finishes. The SL8 is a winning formula designed to take on the most competitive races in the world.


    Features:

    • Aero In Everything design prioritizes aerodynamics in every element of the frame design
    • The "Speed Sniffer" sets the headtube back and creates a sharper edge and lower drag shape
    • Lighter than the SL7 while remaining super stiff (33% increase in stiffness-to-weight ratio)
    • S-Works Tarmac SL8 FACT carbon seatpost is narrower and more aero
    • 32mm tire clearance allows riders to run wider road tires
    • Frame is designed to be "beyond gender" as Specialized research shows there is no need for separate bike designs for men and women
    • The threaded BSA bottom bracket compatibility provides easy maintenance and is less likely to develop creaking noises
    • Only compatible with Shimano Di2 and SRAM AXS groupsets

    Specifications:

    • Frame Material: FACT 10 Carbon
    • Fork Material: FACT Carbon (47mm Offset Sizes: 44 - 52cm) (44mm Offset Sizes 54 - 61cm)
    • Headset: Included
    • Headset Size: S162500005 (Upper and Lower Replacement Bearing)
    • Brake Compatibility: Disc Only (Hydraulic or Mechanical)
    • Brake Mounts: Flat Mount
    • Rotor Compatibility: 160 Only (Front), 140 or 160mm (Rear)
    • Axle Type: Thru Axle
    • Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
    • Stem: Included
    • Stem Size: 1-1/8” (Tarmac Integrated Stem) (6°)
    • Seatpost: Included (S-Works Tarmac SL8 Carbon Seatpost)
    • Seatpost Diameter: Specialized D-Shaped
    • Seatpost Clamp: Tarmac Integrated Seatpost Wedge
    • Bottom Bracket: Not Included
    • Bottom Bracket Type: Threaded BSA
    • Bottom Bracket Width: 68mm
    • Drivetrain Compatibility: 1x and 2x Compatible (Electronic Only)
    • Chainring Compatibility: Maximum chainring size: 1 x 42T or 2 x 55T
    • Tire Clearance: 32mm
    • Cable Routing: Internal
    • Dropper Post Routing: No
    • Water Bottle Bosses: 2 Mounting Positions (Downtube & Seattube)
    • Fender/Rack Mounts: No
    • Color: Gloss Carbon/Vivid Pink Strata/Electric Green
    • Weight: 1690g (56cm)

    Includes:

    • Frame & Fork
    • Tarmac Integrated Stem
    • (1) Headset
    • (1) Seatpost (300mm Size: 44 - 52cm) (380mm Size: 54 - 61cm)
    • (1) S206000001 Derailleur Hanger
    • (1) Front Derailleur Mount Backing Plate (For use with 2x drivetrain)
    • (1) Front Derailleur Mount Cover (For use with a 1x drivetrain)
    • (2) 12mm Thru Axles (100mm Front, 142mm Rear)
  • Size Chart

    Sizing Recommendations for Riders Who Fall Between Sizes:

    • Sizing down will provide a more maneuverable ride while sizing up will provide more stability

    Rider Height (Feet) Rider Height (CM)
    44cm 4'8" - 5'1" 142 - 155cm
    49cm 5'1" - 5'4" 155 - 163cm
    52cm 5'4" - 5'7" 163 - 170cm
    54cm 5'7" - 5'9" 170 - 175cm
    56cm 5'9" - 5'11" 175 - 180cm
    58cm 5'11" - 6'2" 180 - 188cm
    61cm 6'2" - 6'5" 188 - 196cm

    Note: All sizing recommendations are provided by the manufacturer and may differ for each rider.

    Geometry:

    INFO TEXT

    Frame Size (cm) 44cm 49cm 52cm 54cm 56cm 58cm 61cm
    Seatpost Length (mm) 300 300 300 380 380 380 380
    Stem Length (mm) 70 80 90 100 100 110 110
    Stack to Stem (mm) 509 522 535 552 573 599 620
    Reach to Stem (mm) 363 372 377 381 393 400 406
    Frame Stack (mm) 501 514 527 544 565 591 612
    Frame Reach (mm) 366 375 380 384 395 402 408
    Head Tube Length (mm) 99 109 120 137 157 184 204
    Head Tube Angle (Degrees) 70.5 71.75 72.5 73 73.5 73.5 74
    Bottom Bracket Height (mm) 266 266 266 268 268 268 268
    Bottom Bracket Drop (mm) 74 74 74 72 72 72 72
    Trail (mm) 71 63 58 58 55 55 52
    Fork Length, Full (mm) 370 370 370 370 370 370 370
    Fork Rake/Offset (mm) 47 47 47 44 44 44 44
    Front Center (mm) 572 574 577 579 592 606 613
    Chainstay Length (mm) 410 410 410 410 410 410 410
    Wheelbase (mm) 970 973 975 978 991 1006 1013
    Top Tube Length (Horizontal) (mm) 496 509 531 541 563 577 595
    Bike Standover Height (mm) 723 735 746 768 786 808 834
    Seat Tube Length (mm) 433 445 456 473 494 515 545
    Seat Tube Angle (Degrees) 75.5 75.5 74 74 73.5 73.5 73

    Note: All measurements are provided by the manufacturer and may vary depending on how measurements are acquired.
