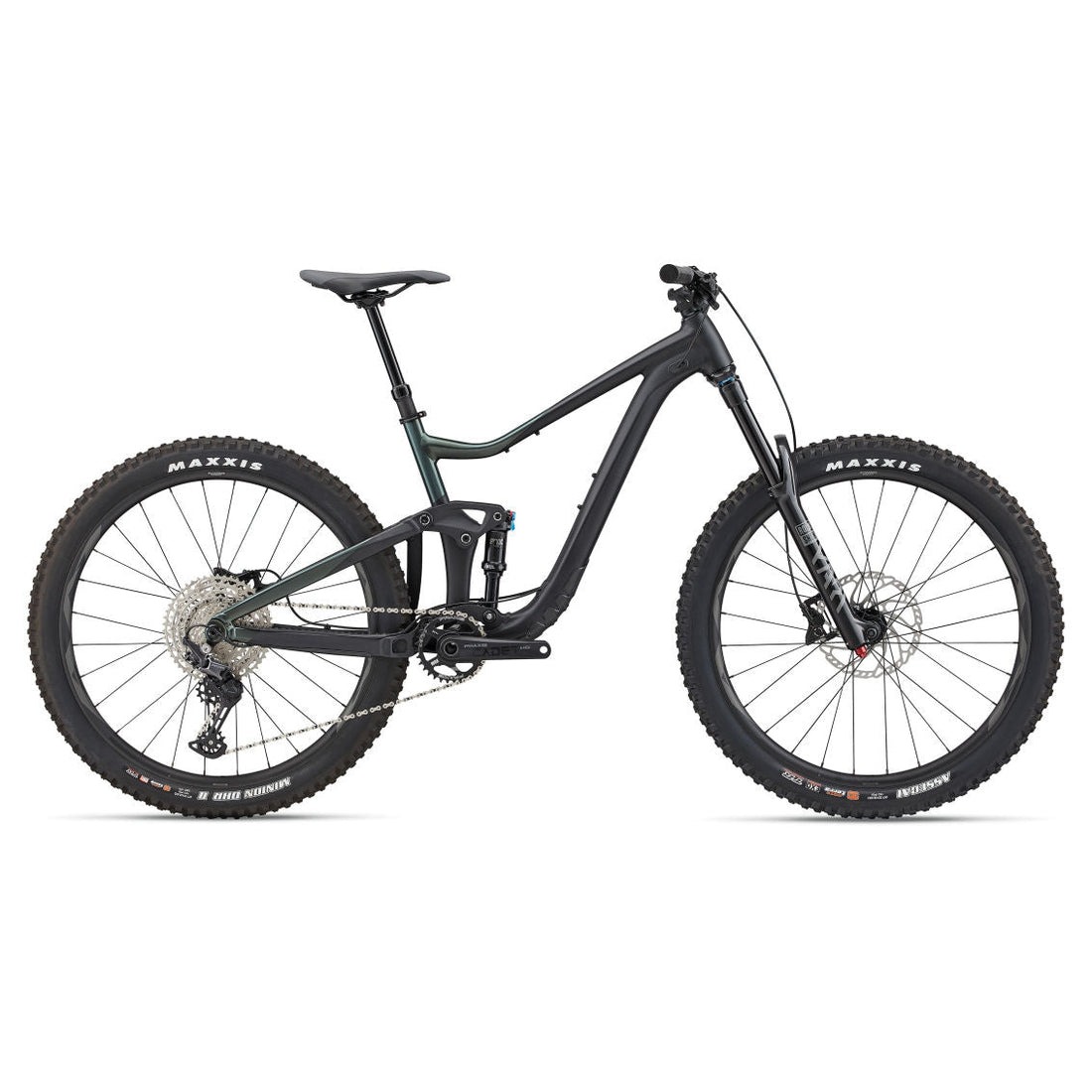

Loading... Please wait...This bike is more than just a tool for conquering trails – it's a ride that's all about fun! With its lively and responsive feel, you'll be grinning ear-to-ear as you carve through the dirt. The Trance X 3 is the perfect companion for any adrenaline junkie looking to take their mountain biking game to the next level. So what are you waiting for? It's time to get your party on!
New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
| Sizes S, M, L, XL |
| Colors Matte Black / Gloss Balsam Green, Good Gray / Black |
| Frame ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle |
| Fork RockShox Yari RC, Motion Control, DebonAir, 37mm offset, 160mm, 15x110 Stealth, custom tuned for Giant |
| Shock Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Handlebar Giant Contact TR35, 800x35mm, 20mm rise |
| Grips Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm |
| Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm |
| Saddle Giant Romero |
| Shifters Shimano Deore, 1x12 |
| Front Derailleur N/A |
| Rear Derailleur Shimano Deore |
| Brakes Tektro M745 |
| Brake Levers Tektro M745 |
| Cassette Shimano Deore, 10x51 |
| Chain KMC X-12 |
| Crankset Praxis Cadet M24 HD, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket Praxis, press fit |
| Rims Giant AM 27.5, alloy |
| Hubs alloy, sealed bearing |
| SpokesSapim |
| Tires[F] Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR [R] Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless |
| Extrast ubeless prepared, 2.6" max tire size, 34t max chainring size |
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| SEAT TUBE LENGTH (inch) | 16.5 | 16.9 | 18.3 | 19.5 |
| SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| TOP TUBE LENGTH (inch) | 22.1 | 22 | 23.4 | 23.3 | 24.5 | 24.4 | 25.6 | 25.5 |
| HEAD TUBE LENGTH (inch) | 3.7 | 4.1 | 4.5 | 4.9 |
| HEAD TUBE ANGLE | 63.7° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° |
| FORK RAKE (inch) | 1.5 | 1.5 | 1.5 | 1.5 |
| TRAIL (inch) | 5.4 | 5.2 | 5.4 | 5.2 | 5.4 | 5.2 | 5.4 | 5.2 |
| WHEELBASE (inch) | 46.4 | 46.3 | 47.4 | 47.3 | 48.5 | 48.5 | 49.7 | 49.6 |
| CHAIN STAY LENGTH (inch) | 17 | 16.9 | 17 | 16.9 | 17 | 16.9 | 17 | 16.9 |
| BOTTOM BRACKET DROP (inch) | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 |
| STACK (inch) | 23.5 | 23.2 | 23.8 | 23.6 | 24.2 | 23.9 | 24.5 | 24.3 |
| REACH (inch) | 16.8 | 17.1 | 17.6 | 17.9 | 18.6 | 18.9 | 19.6 | 19.9 |
| STAND OVER HEIGHT (inch) | 27.9 | 28.3 | 28.1 | 28.5 | 29.1 | 29.5 | 30 | 30.4 |
| HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
| STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 27,5" | 27,5" | 27,5" | 27,5" |
